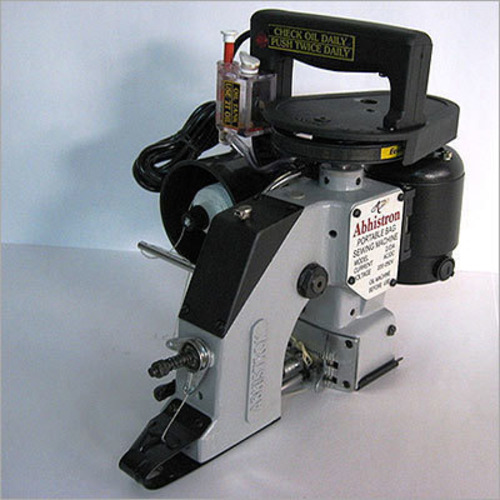

Single Needle Bag Closing Machine With Oil Pump

Standard Specifications

Body                 :  Pressure Die Cast Body (PDC)
Motor               :  AC/DC Motor: 1/10 HP/1/10HP 8000 RPM 240Volt
Speed                :  1600 - 1800 Stitches/Minute
Stitch Type       :  Federal Type, Double Thread Chain Stitch
Stitch Length   :  3.25 to 3.75 Stitches per 2.54 mm
Bag Types         :  Suitable for All Kinds of Multi-Wall Paper, Kraft Paper, Burlap, Cotton, Hessian, PP/

                              PE, Woven/Nonwoven Polypropylene Bags

Industry            :  Bag Closing Applications in Industries engaged in packaging Agricultural Products

                                (Rice & Pulses, Coffee, Grains etc), Flour, Fertilizers, Sugar, Chemicals, Cattle & Poultry

                                Feed, Plastic Granules, Oil Cakes & Flakes, Dolomite/Other Mineral Powders etc.
Needle              :  DB x 1—200/25

Thread             :  Machine is designed to operate with all kinds of Bag Closing Threads (Polyester,

                                Polypropylene, Polyamide, Cotton, Blended etc.).

Lubrication     :  With Oil Pump (Model DA)/With Manual Oiling (Model D)

Lubricant        :  2T Oil Only
Weight             :  6.300 Kgs to 6.500 Kgs Approximately (Without Thread Cone)

Note                 :  Due to Continuers Improvement Specification/Appearance May Change without Notice.
